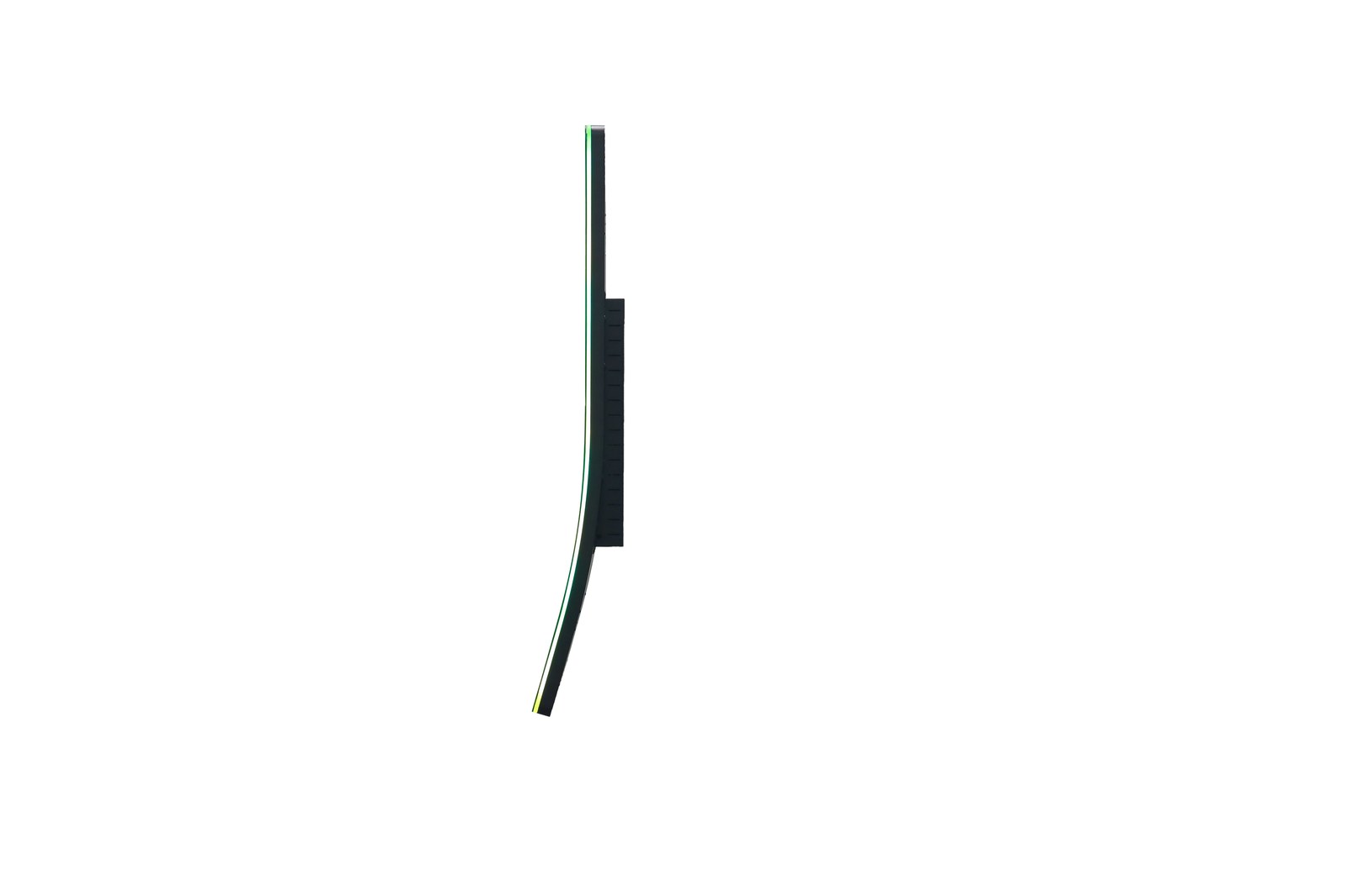

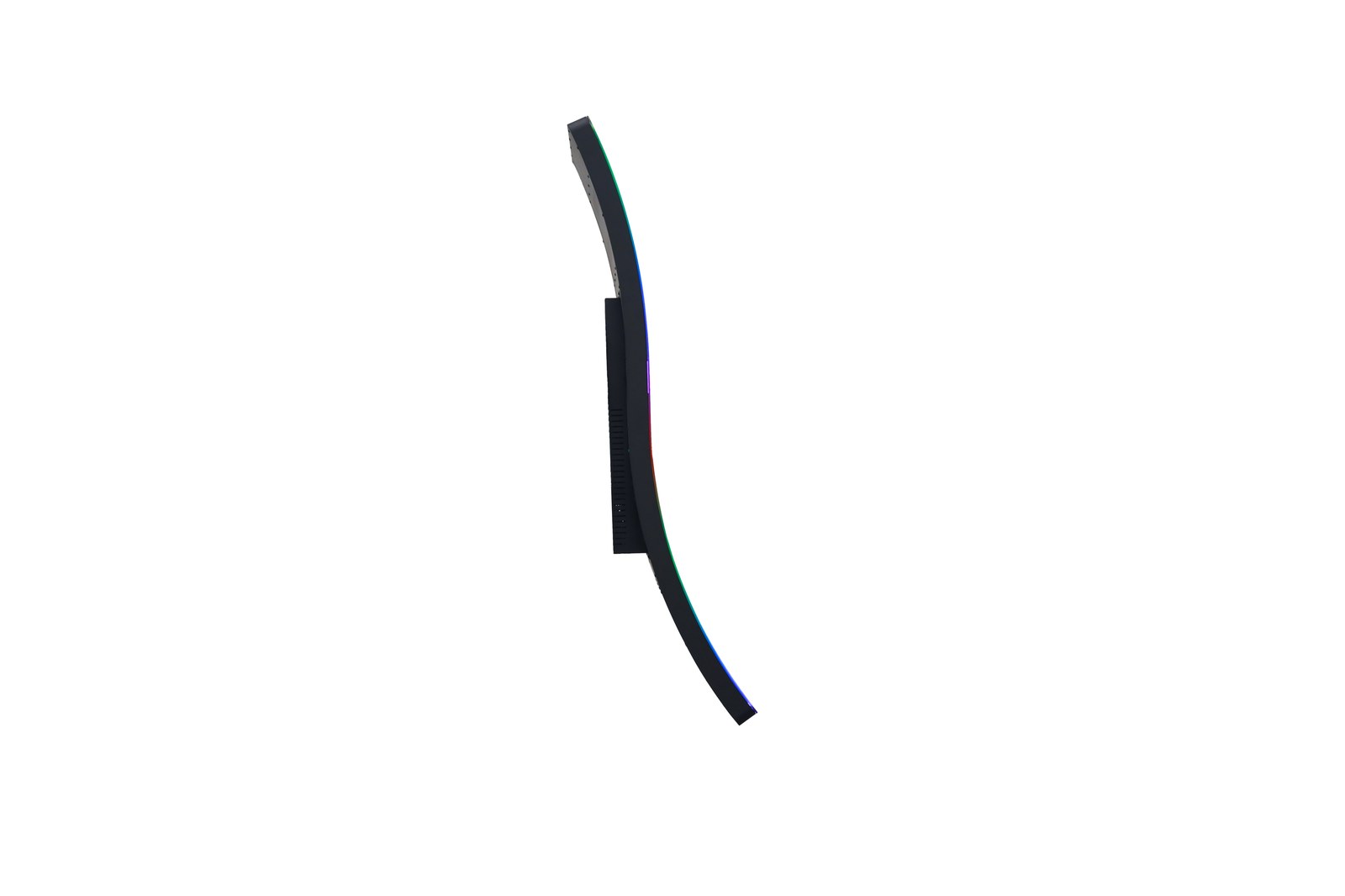

S-curved 55″ screen with a deeper 1200R radius and high 500-nit brightness, giving a stronger wrap-around effect for premium slot machines and casino cabinets. LED lighting strip included.
Specifications
| Size | 55″ |
| Resolution | 1920×1080 or 3840×2160 |
| Brightness | 500 nits (high brightness) |
| Curvature | S-curve, radius 1200R |
| LED deco | LED lighting strip |
| Touch | 10-point PCAP (projected capacitive), optional |
| Refresh rate | 60 Hz |
| Color gamut | NTSC 72% / NTSC 102% |
| Glass | Chemical or tempered strengthened glass (anti-glare optional) |
| I/O | HDMI, VGA, DVI, Touch-USB, RS232, DP (optional) |
| LED deco | Edge LED lighting |
| Warranty | 3 years |
| Customization | Available — sizes, curvature, brightness, logo and packaging |
Applications: slot machines, casino gaming terminals, multi-player gaming tables, arcade and skill games.
This is an example of our standard range — tell us the size, curvature and quantity you need (or send a sample) and our factory will prepare a sample for your approval before production. You buy factory-direct: contracts and proforma invoices are issued directly by the manufacturer, with no middleman markup.
Production examples
Examples of screens and cabinets produced for gaming machine builders. Tell us your dimensions and quantity — or send a sample — and we will produce to match.
Related information
- Full gaming screen range comparison (all sizes, curves & brightness)
- Test reports & certifications (salt spray, vibration, drop, safety)
- Our factory — 23,000 m², 20+ production lines
- How to choose: C-curve vs J-curve vs S-curve
- Slot machine screen sizes explained (21.5″–55″)
Related products & guides
- C-curved R800 42″ deep-curve screen
- J-curved slot machine screens (43″-55″)
- Flat vs curved: which should you choose?
Ordering, packing and delivery
How an order runs: you send the specification (or a sample) → the factory prepares a sample for your approval → the specification and price are locked against that sample → production, inspection, export documentation and shipping follow. The sales contract and proforma invoice are issued by the manufacturer in Gaoyou, Jiangsu, so you are buying factory-direct with no distributor markup.
Packing: production units travel in foam-lined cartons with corner protection on export pallets, sized for standard container loading; samples and urgent single units can be shipped in a flight case. Tell us if your warehouse needs a specific pallet footprint or labelling.
Inspection and documentation: the manufacturer issues the commercial invoice, packing list and certificate of origin, and test reports are available for the model quoted. Pre-shipment photos or a video inspection of the finished batch can be arranged on request before the balance payment.
Warranty and spares: 3 years on the display. Because the contract sits with the production line rather than a distributor, warranty claims are handled against the batch that was built — keep the invoice number with the cabinet records so a later replacement can be matched quickly.
Frequently asked questions
What sizes does the S-curved series cover?
The S-curved series covers S-curve, radius 1200R, 500 nits (high brightness), resolution 1920×1080 or 3840×2160. Slot cabinet openings vary, so if you are designing to a fixed aperture, send the visible screen area in millimetres and we confirm the exact panel before production.
Can I order the S-curved series with touch?
Yes. Touch is specified per order — the standard configuration is 10-point PCAP (projected capacitive), optional. Tell us how many simultaneous touch points your game software uses, and whether the touch controller must report through USB or RS232.
Which interfaces can the S-curved series use?
The controller is configured to your platform: HDMI, VGA, DVI, Touch-USB, RS232, DP (optional). Multi-input boards and cabinet-level control ports are available, so a replacement can match the connectors on the machine you are building or repairing.
How do I get a price for the S-curved series?
Prices are quoted per order — there is no list price, because size, curvature, brightness, touch, glass treatment and order quantity each change the panel and production cost. Send quantity, size, curve, brightness, touch and interface requirements plus the destination port, and you receive a factory-direct quotation within one working day. Sample development is supported before you commit to a volume order.
What warranty applies to the S-curved series?
3 years on the display, from a factory with roughly 23,000 m² of display production and about 300,000 units a year. Because the sales contract is issued by the manufacturer itself, warranty claims go back to the production line rather than to a distributor.
Replacing a screen rather than specifying a new one? How to match an existing display lists the measurements that make a replacement fit the first time. New to the terminology in the table above? The screen glossary defines nits, radius, PCAP and the rest, and the buyer’s specification checklist walks through every decision in order. For a side-by-side view of all five series, see the range comparison table.
